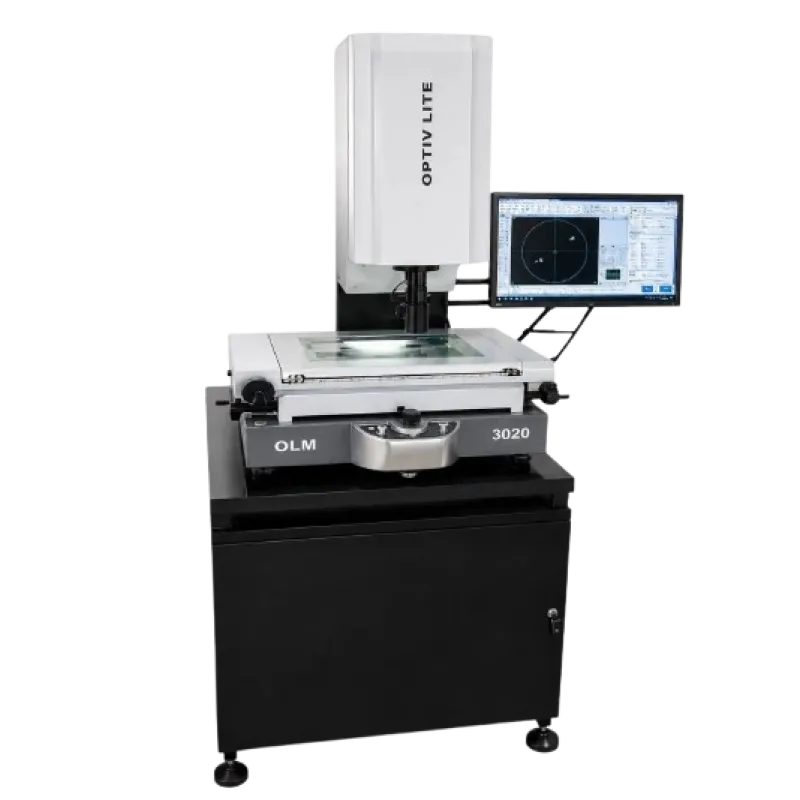

OPTIV LITE OLM 3020

VIJA TECHNOLOGY LLC
VIJA TECHNOLOGY LLC
17149473129
https://vija-us.com/

Thông tin chi tiết

Working area X.Y.Z: 300x200x200 mm
Overall machine dimensions X.Y.Z: 766x803x1015 mm
Camera: High-resolution 1/3″ color CCD camera
Accuracy Exy: 3.0 + L/150 µm
Accuracy Ez: 5.0 + L/150 µm
Working distance: 90 mm
Illumination system: LED backlight (bottom) and LED ring light (top)
Magnification: Manual adjustment (30x to 180x)
Resolution: 1.0 µm
Load capacity: 10 kg
Measuring software: Metus
Operating temperature: 20°C ± 2
Humidity: 40% – 70% RH
Optional: Touch probe sensor
